Infusion Solutions.
Small Devices. Large Benefits.
Applications
• Acute pain management
Intended Use
• Intravenous
• Subcutaneous
• PCA
• Post-surgery
• Labour & delivery

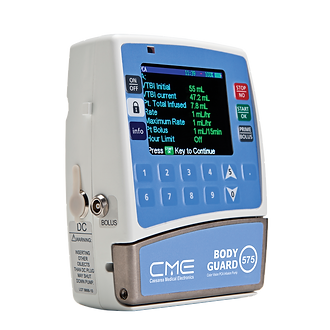

BodyGuard 575 Color Vision™
Features & Benefits
Delivers 4 Infusion Programs:
• Basal Only
• Basal & Bolus
• Bolus Only
• Auto Bolus
Drug Library - Store up to
26 Protocols
Based on extensive clinical feedback,
CME designed a library of drug protocols
that offer dose error reduction and easeof-
use for each department.
Piston Mechanism
Delivers ± 5% accuracy and 1.8 μl linear
infusion even at the lowest flow rates.
0.1 to 100 ml/h Flow Rates
Specific range for pain management.
BodyComm™ Software
Review patient history with charts and
2000 events log or manage pump settings
on your PC.
EMR Ready
Connect to Electronic Medical Record
systems to increase safety and optimize
clinical workflow.
High Resolution Color Screen
A large multi colored display with
exceptional contrast level lets you read all
relevant infusion data on a single screen.
Wi-Fi Connectivity
Equipped with 802.11 wireless protocol
that enables wireless integration to
Electronic Medical Records (EMR).
Air & Mobile Medicine
CME infusion pumps provide a complete
range of infusion onboard any air or
ground vehicle. CME pumps are
RTCA-DO160 compliant.
Flexible Configuration
Inpatient/Outpatient Accessories
A docking station and lockbox are
available for optimal pole-mounted use,
and a carrying pouch for use at home.
Supports Multiple Languages
Over 20 languages available to meet your
needs and preferences.
Economy & Convenience
Money-Saving Rechargeable Battery
A recent cost analysis estimates a
savings of $600.00 per pump per year
using the rechargeable battery.
Safety & Security
MediGuard Dose Error Reduction System
Based on patient’s weight, you can set
dose limits to help prevent dosing errors.
Auto Bolus Rate Reduction
Overcomes patient back pressure to
help prevent transient occlusion alarms.
Post-Occlusion Bolus Reduction System
Prevents delivery of false boluses
following a downstream occlusion event.
Pre-Detection of Increases in
Downstream Line Pressure
Helps the clinician to detect potential
catheter problems at an earlier
stage with on screen actual pressure
monitoring.
Color-Coded Pump and Disposables
Quickly and easily tell pump and set
apart from other type of equipment.
3-Level Access Codes
Prevent accidental or unauthorized program changes.
Built-in Free Flow Protection
CME administration sets include an
integrated anti-siphon to meet JCAHO
guidelines.
