Infusion Solutions.
Small Devices. Large Benefits.
Applications
• Total Parenteral Nutrition
• Critical care
• Patient transport
• Emergency medicine
• Fluid replacements
• Lipids
• Enzyme replacements
• Chronic pain management
Intended Use
• Parenteral
• Intravenous
• Subcutaneous
• Percutaneous
• Intra-Arterial

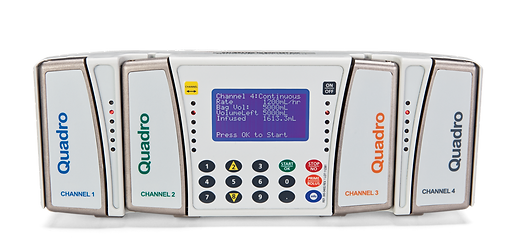

BodyGuard Quadro™
Features & Benefits
4 Independent Infusion Channels
Deliver 4 separate treatment regimens
using one keypad only.
2 Infusion Programs:
• Continuous
• Dose / Drug Library
Piston Mechanism
Delivers ± 5 % accuracy and 1.8μl
linear infusion even at low flow rates.
0.1 to 1200 ml/h Flow Rates
Extra-wide range to serve a variety of
infusion regimens.
Air & Mobile Medicine
CME infusion pumps provide a complete
range of infusion onboard any air or
ground vehicle. CME pumps are
RTCA-DO160 compliant.
BodyComm™ Software
Review patient history with charts and
up to 1000 events log or manage pump
settings on your PC.
EMR Ready
Connect to Electronic Medical Record
systems to increase safety and optimize
clinical workflow.
Flexible Configuration
Supports Multiple Languages
Over 20 languages available
to meet your needs and
preferences.
True Portability
Size
236 x 88 x 41 mm
A good fit anywhere.
Weight
Only 800g
Goes where the patient goes and saves
you precious space in the ward/clinic.
Economy & Convenience
Same Interface as Single-Channel Pumps
Familiar interface simplifies training
and service.
Battery-Powered
Uses extended life rechargeable Li-
Polymer battery for true portability.
Switches to AC power without interruption.
Safety & Security
Auto Bolus Rate Reduction
Overcomes patient back pressure to help
prevent transient occlusion alarms.
Post-Occlusion Bolus Reduction System
Prevents delivery of false boluses
following a downstream occlusion event.
Precise In-Line Pressure Detection
Detects downstream and upstream
pressure; graphically displayed on screen.
Drop Sensor
Provides a separate safety check to
verify fluid flow from reservoir to patient
(Optional).
Built-in Free Flow Protection
CME administration sets include an
integrated anti-siphon to meet
JCAHO guidelines.
3-Level Access Codes
Prevent accidental or unauthorized
program changes.
* This device has not been submitted for FDA approval
